US Fan Direct Drive Upblast Restaurant Grease Roof Exhaust Or Wall Fan 12″, .25 HP, 120 Volts, 1 Phase

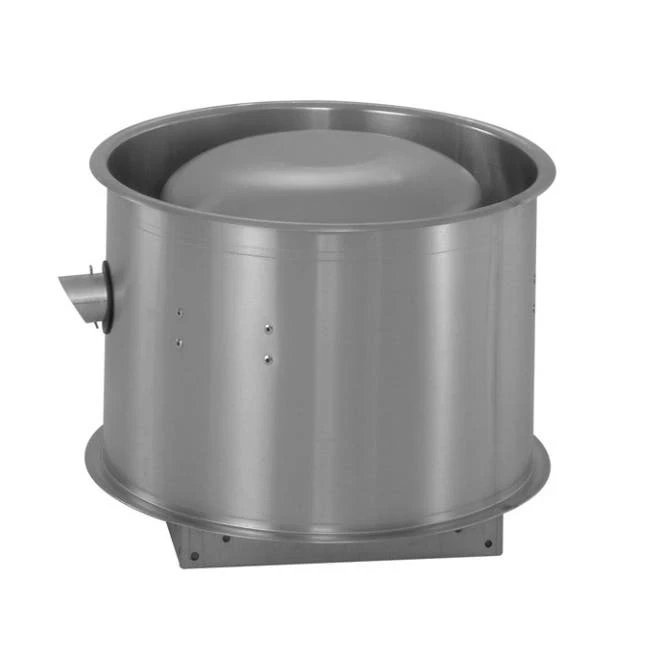

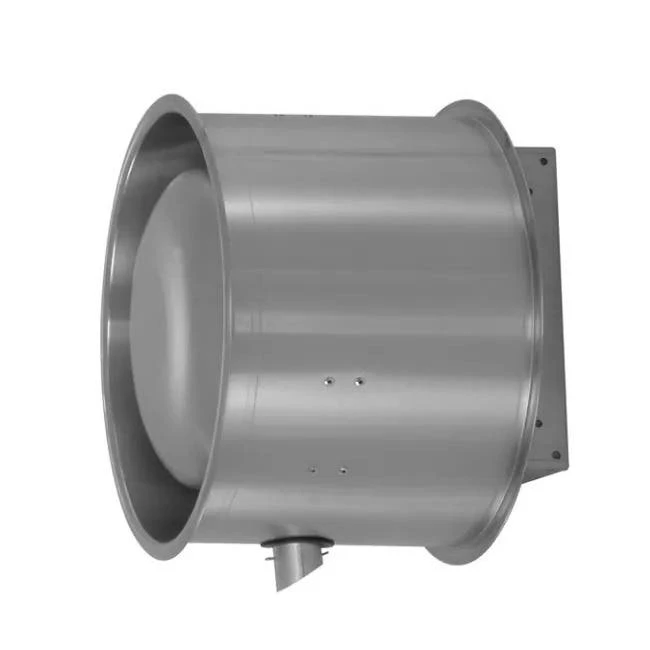

This restaurant exhauster is a direct drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 1,753 and ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

Housing

• Windband constructed of heavy gauge aluminum with rolled bead for strength
• Sealed windband perimeter to prevent leakage
• Quick release latches allow easy removal of motor compartment cover without special tools
• Heavy gauge galvanized wire birdscreen (PDURF only)
• Aluminum curb cap

Centrifugal Wheel

• Aluminum construction backward curved blade
• Non-overloading design for safe operation
• Wheel optimally matched with die-formed orifice
• Precision balanced for smooth vibration free operation

Motors

• Continuous duty motors with sealed ball bearings located outside the airstream
• Large breather tube directs outside air into the motor compartment resulting in maximum life
• Motor compartment cooled by fins located on top of impeller

This product is comparable to Acme Fans, same great quality, better price.
