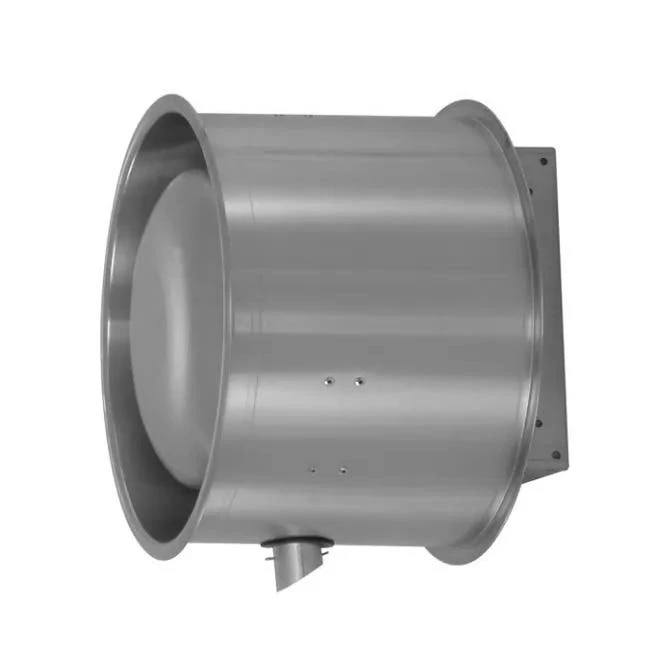

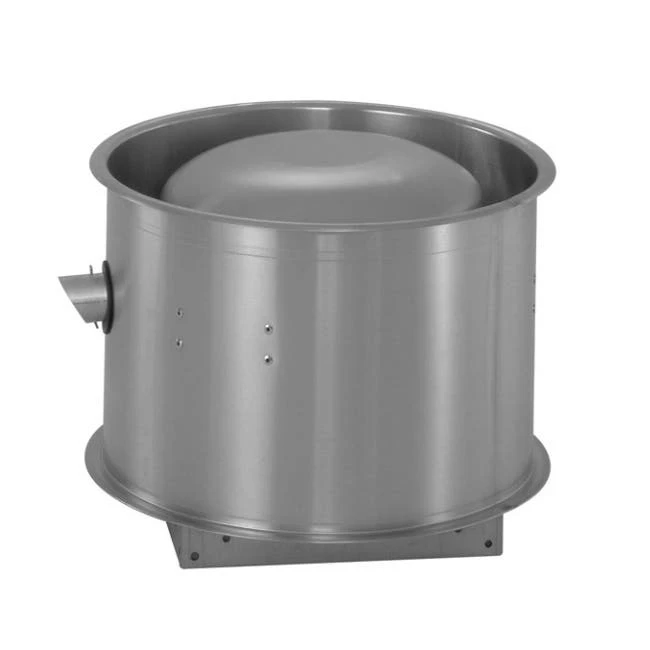

US Fan Direct Drive Upblast Restaurant Grease Roof Exhaust Or Wall Fan 11″, .1 HP, 120 Volts, 1 Phase

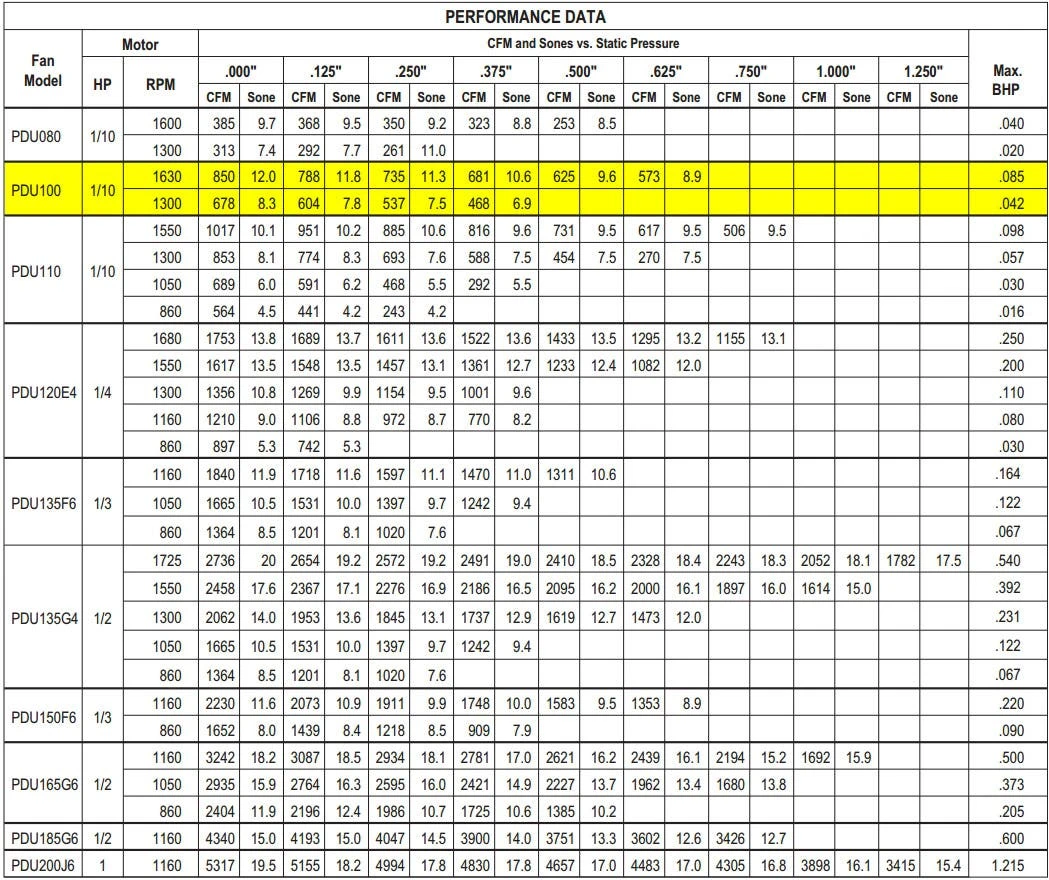

This restaurant exhauster is a direct drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 850 and is ideally suited for removing grease-laden exhaust in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

Housing

• Windband constructed of heavy gauge aluminum with a rolled bead for strength
• Sealed windband perimeter to prevent leakage
• Quick-release latches allow easy removal of motor compartment cover without special tools
• Aluminum curb cap

Centrifugal Wheel

• Aluminum construction backward curved blade
• Non-overloading design for safe operation
• Wheel optimally matched with die-formed orifice
• Precision balanced for smooth vibration-free operation

Motors

• Continuous duty motors with sealed ball bearings located outside the airstream
• Large breather tube directs outside air into the motor compartment resulting in maximum life
• Motor compartment cooled by fins located on top of impeller

This product is comparable to Acme Fans, same great quality, better price.
