US Fan Belt Drive Upblast Restaurant Grease Roof Exhaust Or Wall Fan 10″, .25 HP, 208 Volts, 3 Phase

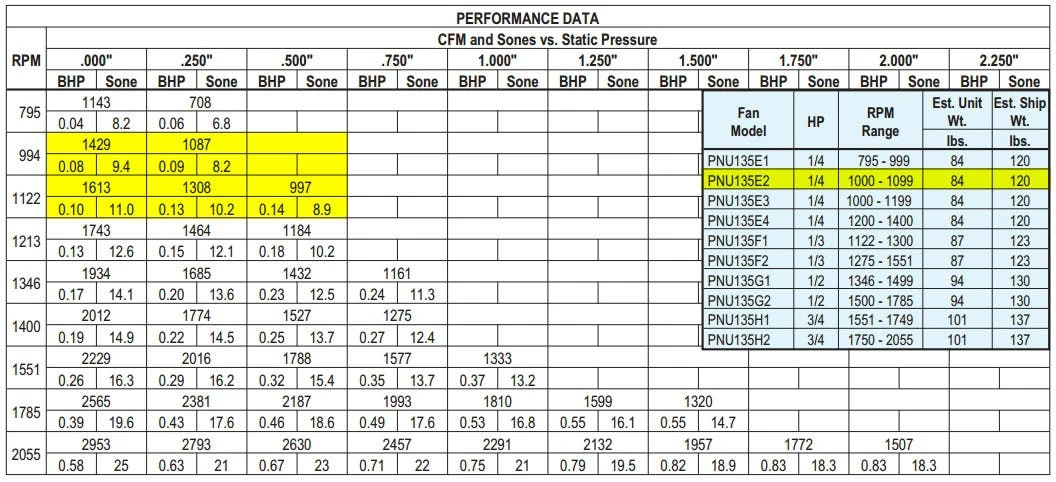

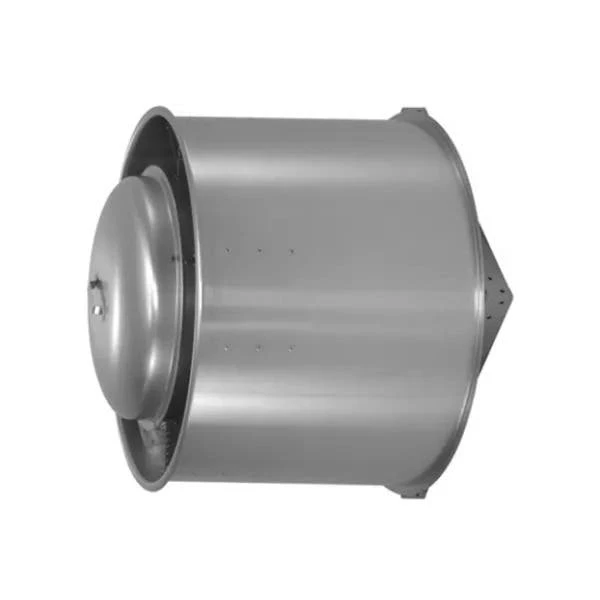

This restaurant exhauster is a belt drive upblast centrifugal fan that can be used on roofs or set horizontally to be used on walls. This has a max CFM of 1,429 and ideally suited for removal of grease laden exhaust found in restaurant and commercial kitchen applications. Other applications include a wide range of commercial, industrial, and institutional facilities such as schools, hospitals, prisons, and assembly areas.

Housing

• Windband constructed of heavy gauge aluminum with rolled bead for strength
• Sealed windband perimeter to prevent leakage
• Wheel and drive assembly supported by rugged galvanized steel frame
• Quick release latches allow easy removal of motor compartment cover without special tools
• Aluminum curb cap (except smoke exhaust fans)

Centrifugal Wheel

• Aluminum construction backward curved blade (steel wheel for smoke exhaust fans)
• Non-overloading design for safe operation
• Wheel optimally matched with die-formed orifice
• Precision balanced for smooth vibration free operation

Bearings

• Permanently lubricated in an Acme D.S. pillow block housing
• Bearings are resiliently mounted in neoprene rings
• Rated at L50 life of 200,000 hours
• 5 year limited warranty on Acme D.S. pillow block bearings

Drive Assembly

• Cast iron drives sized for 150% of drive horsepower
• Static free, oil and heat resistant belts

Motors

• Continuous duty motors located outside the airstream
• Large breather tube directs outside air into the motor compartment resulting in maximum life
• Motor compartment cooled by fins located on top of impeller

This product is comparable to Acme Fans, same great quality, better price.
