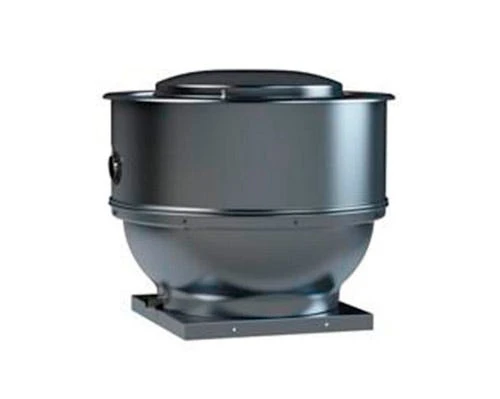

S&P STXB14 Centrifugal Roof Or Wall Belt Drive Upblast Exhaust Fan .75 HP 3132 CFM Single Phase – STXB14RHULRH1S

Features

• Max CFM 3132
• Attractive spun aluminum exterior
• Belt drives permit easy performance adjustments when needed
• Curved non-overloading backward inclined wheel for efficiency at higher static pressures
• AMCA Air and Sound Licensed
• UL762 listed for grease removal
• .75 HP
• Single Phase
• 1550RPM
• ODP Motor Encloser

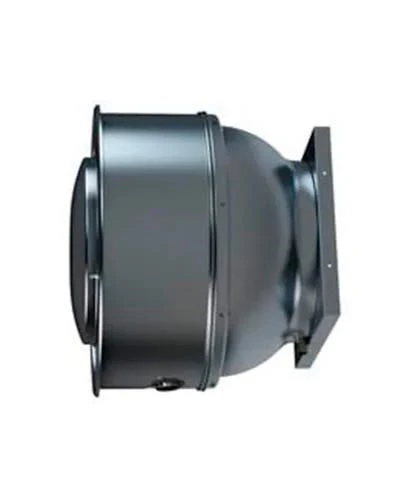

STXB and STXB-RHUL Upblast Belt Drive Centrifugal Roof/Sidewall Exhaust Fans are designed to exhaust air up to 3132 CFM in high static pressure applications to 2-3/4″. The aluminum exterior provides an attractive appearance. Its belt drive results in lower operating RPM and sound levels, making the Series STXB well suited to applications where quiet operation is important. The drive also permits easy performance adjustments when needed to balance the total ventilation system. The non-overloading backward inclined wheel, with its higher static pressure capability, makes this unit suitable for either ducted or non-ducted applications. Its roof or sidewall mounting options permit locations near the area to be ventilated, allowing short duct runs and more efficient operation.
