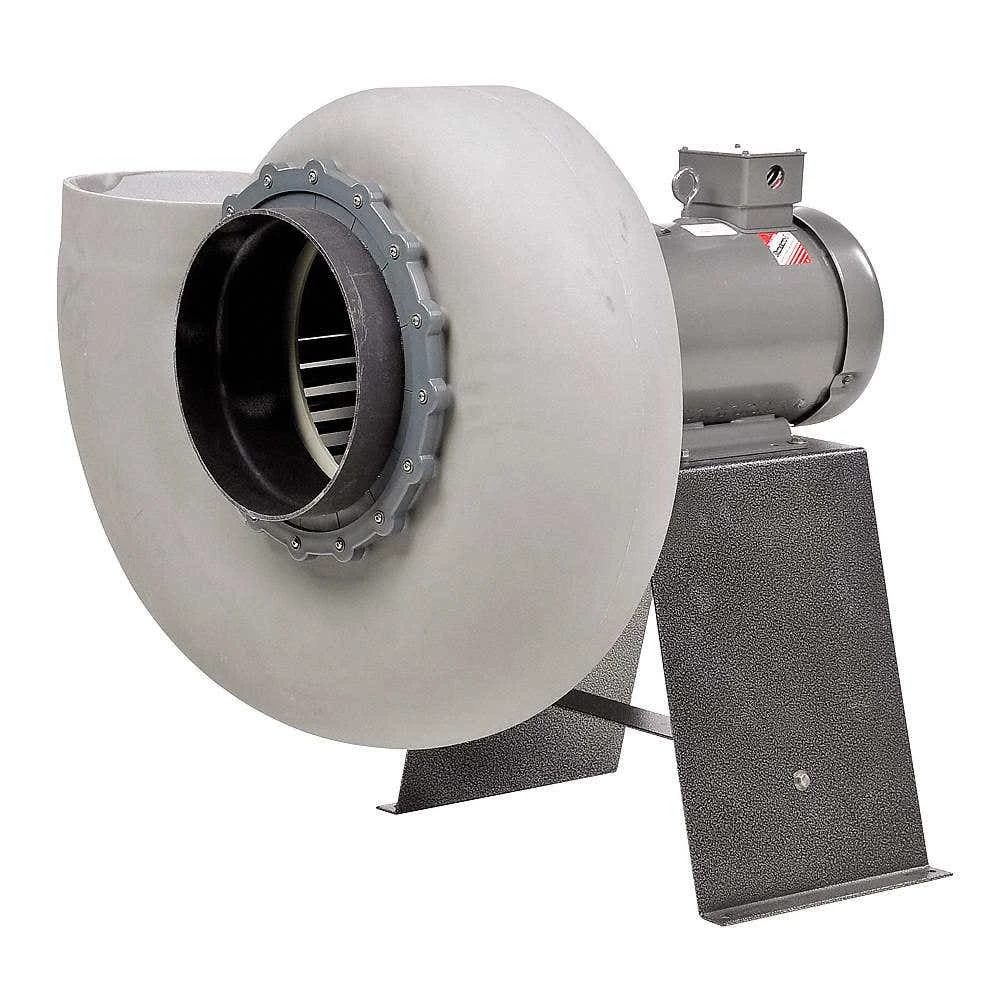

Plastec 35 Series Direct Drive Forward Curve Blower Hazardous Location 3 HP 6400 CFM 3 Phase - PLA35XT6P

Original price was: $374.00.Current price is: $98.99.

SKU: P35XT6P300 Category: Fans & Ventilation

Safe Shopping Guaranteed
Buy with Confidence, Get Quality
Shop with Confidence
Service with a smile, always online.

Features

Direct Drive Forward Curve
Wheel Diameter 14.4″
Max CFM 4000
Decibels 71 dBA @ 5 Feet
Inlet Diameter 12.4″
Outlet Diameter 12.4″
230/460 V 3-Phase 50/60 Hz
Motor HP 5
Motor RPM 1150
Motor Type Explosion Proof 3 Phase
Motor Enclosure Totally Enclosed Fan Cooled

Plastec centrifugal fans are available in 6 sizes from 5″ up to 23.50″ inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Alternate Model Number: PLA35XT6P

SKU	P35XT6P300
Wheel Size	14"
Width	29.51
Height	37
Amperage Requirement	14.4
Electrical	208-230 / 460 V, 3 Phase, 60 Hz
Horsepower	3 HP
Motor RPM	1140
Decibel Level (dBA)	71
Weight (in lbs)	214.000000
Maximum CFM	6400
Static Pressure	5.4 inWg
Drive Type	Direct
Blower Motor	3 Phase Explosion Proof
Additional Information	For Hazardous Location
Brand/Manufacturer	Plastec
Depth	31.54
