Original price was: $309.00.$99.99Current price is: $99.99.
- Safe Shopping Guaranteed
- Buy with Confidence, Get Quality
- Shop with Confidence
- Service with a smile, always online.

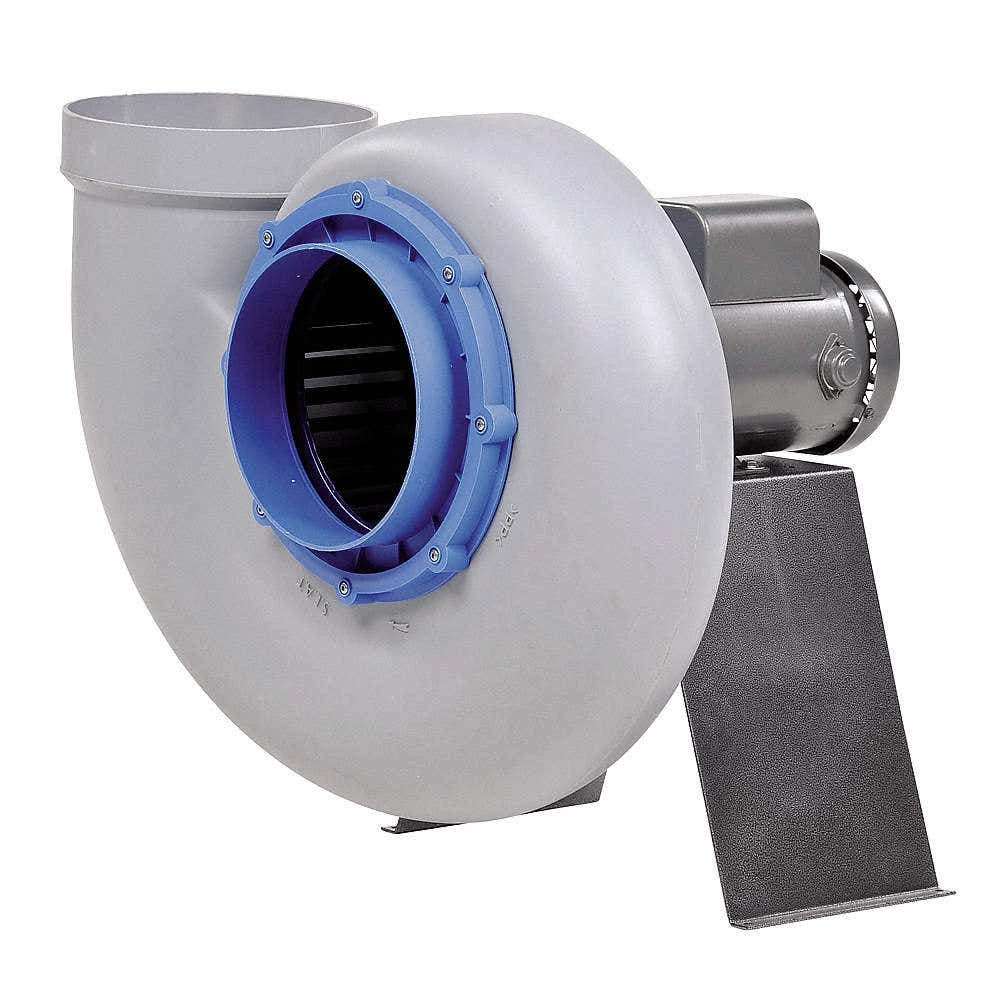

Plastec centrifugal fans are available in 6 sizes from 5″ up to 23.50″ inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Features
- Direct Drive Forward Curve
- Wheel Diameter 11.8″
- Max CFM 2900
- Decibels 54 dBA @ 5 Feet
- Inlet Diameter 9.84″
- Outlet Diameter 10.75″
- 230/460 V 3-Phase 50/60 Hz
- Motor HP 2
- Motor RPM 1725
- Motor Type Explosion Proof 3 Phase
- Motor Enclosure Totally Enclosed Fan Cooled
- Carbon Impregnated Polypropylene (CIP) Housing Assembly
Plastec centrifugal fans are available in 6 sizes from 5″ up to 23.50″ inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.
Plastec Series Carbon Impregnated Polypropylene (CIP) blowers are designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.
Alternate Model Number: PLA30XT4P-CIP
Plastec roof unit kit for model P30.
Features
- Injection Moulding Process Provides Uniform Thickness And Strength
- Corrosion Resistant
- Horizontal Discharge With Roof Curb Mounting Or Side Wall Mount
- Roof Curb Or Wall Mounting For RU15 Through RU30
- Attractive Design
- Optional Disconnect Switch
- Easy Access For Maintenance When Required
- Includes Roof Curb Cap Base, Weather Cover For Motor And Exhaust Guard
- UV Treated
- Discharge To 8 Different Positions In 45º Increments

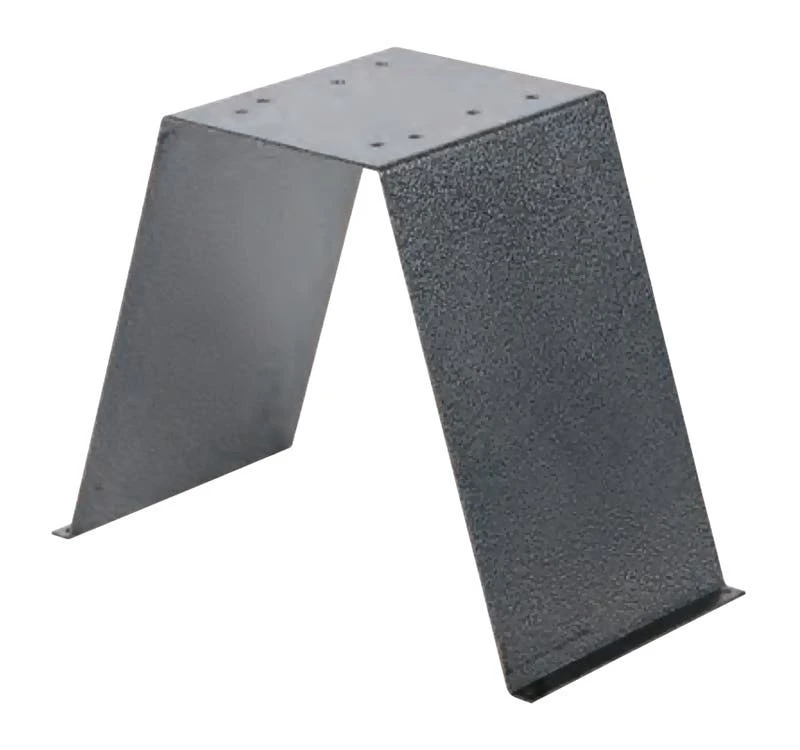

Plastec enamel coated metal motor support stand for model P30.
Features
- Attractive Design
- Easy To Install
- Motor Mounting Hardware Supplied Is Stainless Steel
- Strong, Durable And Rust Resistant

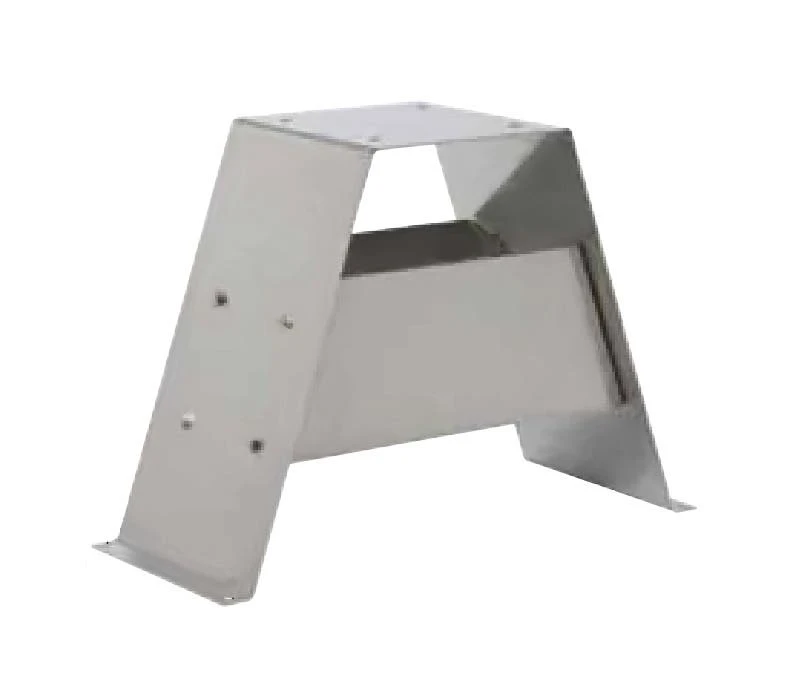

- Model MB35 Has Support Bracket
| SKU | MB30 |
|---|---|
| Wheel Size | 12" |
| Width | 21.54" |
| Height | 26.77" |
| Amperage Requirement | 6.4 |
| Electrical | 208-230 / 460 V, 3 Phase, 60 Hz |
| Horsepower | 1.5 HP |
| Motor RPM | 1725 |
| Decibel Level (dBA) | 54 |
| Weight (in lbs) | 12.000000 |
| Maximum CFM | 3400 |
| Static Pressure | 3.3 inWg |
| Drive Type | Direct |
| Blower Motor | Explosion Proof 3 Phase |
| Additional Information | Carbon Impregnated Polypropylene Housing Assembly (CIP) |
| Brand/Manufacturer | Plastec |
| Depth | 25.59" |
