Name: Authentic Plastec 30 Series Direct Drive Forward Curve Blower Hazardous Location 1.5 HP 3400 CFM Single Phase - PLA30XS4P-CIP Available at the Best Prices - Airfiltrationus.com in USA.
SKU: P30XS4P150
Price: 96.99 USD
Availability: InStock

Sale!

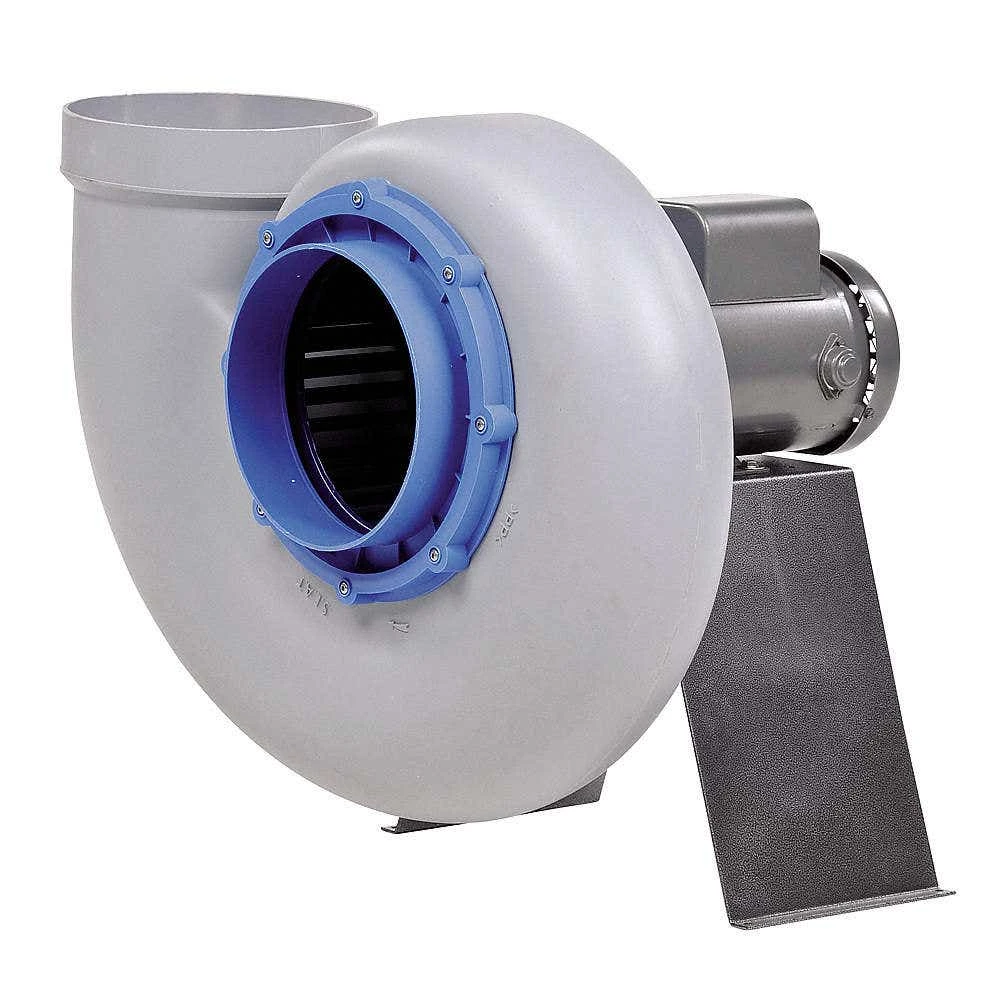

Plastec 30 Series Direct Drive Forward Curve Blower Hazardous Location 1.5 HP 3400 CFM Single Phase - PLA30XS4P-CIP

Original price was: $385.00.Current price is: $96.99.

SKU: P30XS4P150 Category: Fans & Ventilation

Safe Shopping Guaranteed
Buy with Confidence, Get Quality
Shop with Confidence
Service with a smile, always online.

Features

Direct Drive Forward Curve
Wheel Diameter 11.8″
Max CFM 2900
Decibels 54 dBA @ 5 Feet
Inlet Diameter 9.84″
Outlet Diameter 10.75″
115/230 V 1-Phase 50/60 Hz
Motor HP 2
Motor RPM 1725
Motor Type Explosion Proof, Single Phase, Capacitor Run
Motor Enclosure Totally Enclosed Fan Cooled
Carbon Impregnated Polypropylene Housing Assembly (CIP)

Plastec centrifugal fans are available in 6 sizes from 5″ up to 23.50″ inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Plastec Series Carbon Impregnated Polypropylene (CIP) blowers are designed to work in highly corrosive air exhaust applications containing potentially explosive atmospheres.

Alternate Model Number: PLA30XS4P-CIP

SKU	P30XS4P150
Weight (in lbs)	134.000000
Brand/Manufacturer	Plastec
Additional Information	Carbon Impregnated Polypropylene Housing Assembly (CIP)
Blower Motor	Explosion Proof, Single Phase, Capacitor Run
Static Pressure	3.3 inWg
Maximum CFM	3400
Decibel Level (dBA)	54
Wheel Size	12"
Motor RPM	1725
Horsepower	1.5 HP
Electrical	120/240 V, Single Stage, 60 Hz
Amperage Requirement	19
Height	29.52
Width	23.68
Depth	25.86
