Name: Shop Online Now for Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount America.
SKU: P20SS6P025 / MB15
Price: 99.99 USD
Availability: InStock

Sale!

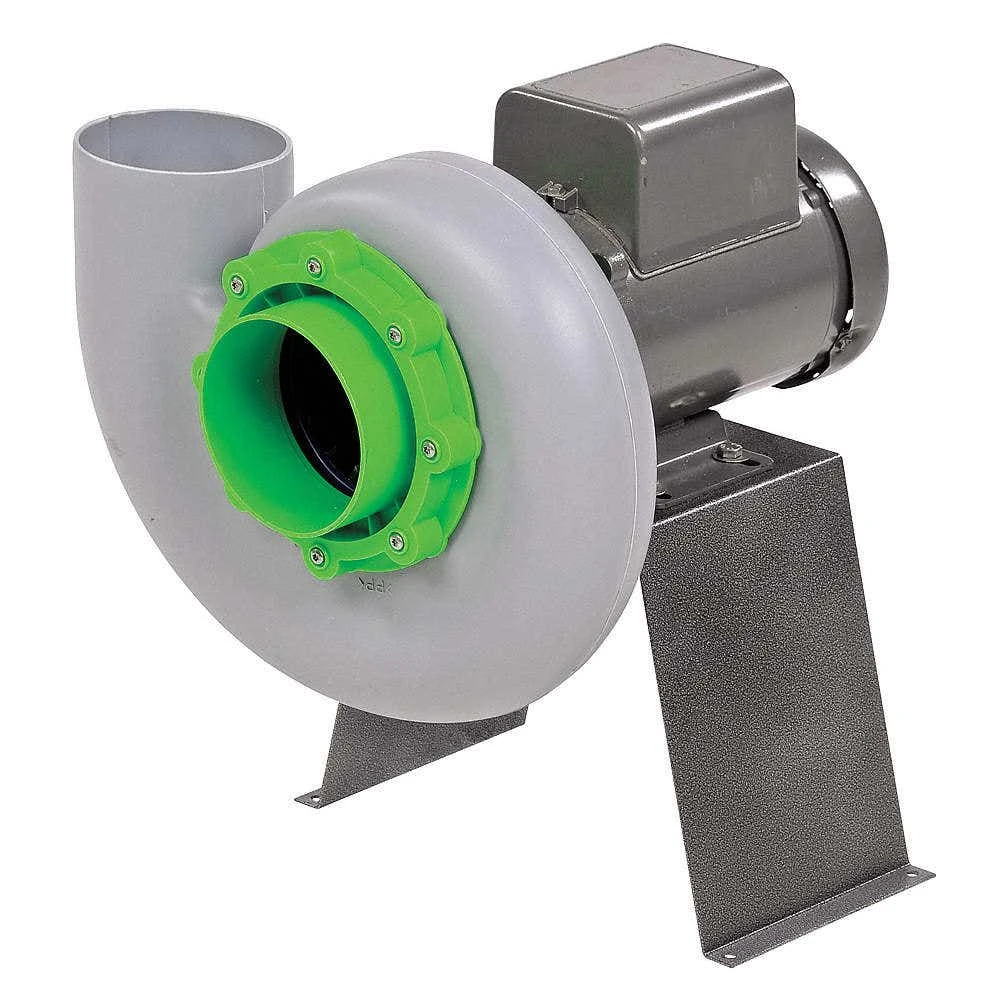

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount - Image 2

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount - Image 3

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount - Image 4

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount - Image 5

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 500 CFM Single Phase With Mount - Image 6

Original price was: $330.00.Current price is: $99.99.

SKU: P20SS6P025 / MB15 Categories: Fans & Ventilation, Forward Curve Blowers

Safe Shopping Guaranteed
Buy with Confidence, Get Quality
Shop with Confidence
Service with a smile, always online.

Plastec centrifugal fans are available in 6 sizes from 5″ up to 23.50″ inlet. They are designed to exhaust fumes from highly corrosive environments such as laboratories, chemical plants, hospitals, universities, etc. The all-polypropylene construction and thick walls ensure maximum protection against acids and corrosion.

Plastec 20 Series Direct Drive Forward Curve Blower Corrosive Environment .25 HP 1200 CFM Single Phase – PLA20SS6P

Features

Direct Drive Forward Curve
Wheel Diameter 7.9″
Max CFM 500
Decibels 43 dBA @ 5 Feet
Inlet Diameter 6.3″
Outlet Diameter 6.62″
115/230 V 1-Phase 50/60 Hz
Motor HP .25
Motor RPM 1140
Motor Type Standard Duty, Single Phase, Capacitor Run
Motor Enclosure Totally Enclosed Fan Cooled

Alternate Model Number: PLA20SS6P

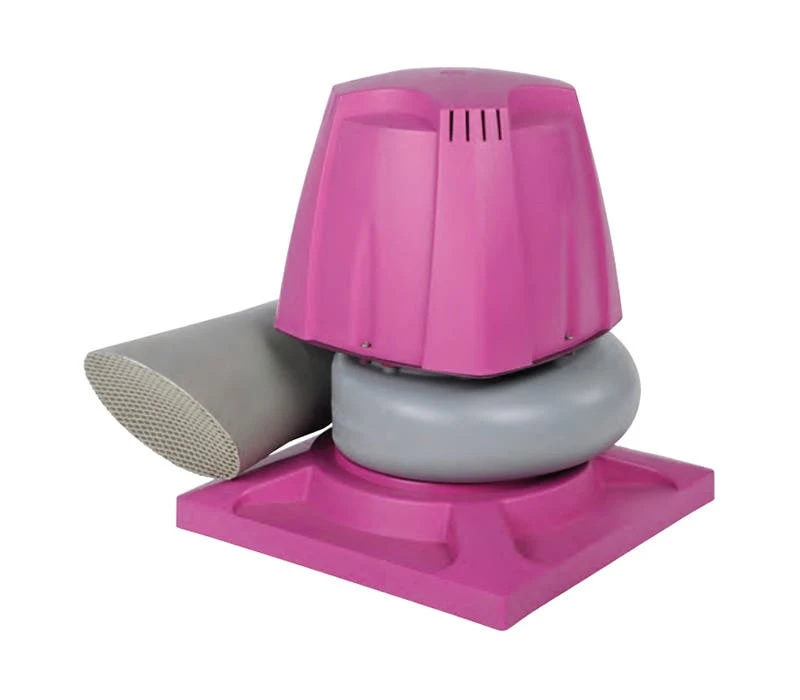

Plastec Roof Unit Kit for Model P20

Plastec roof unit kit for model P20.

Features

Injection Moulding Process Provides Uniform Thickness And Strength
Corrosion Resistant
Horizontal Discharge With Roof Curb Mounting Or Side Wall Mount
Roof Curb Or Wall Mounting For RU15 Through RU30
Attractive Design
Optional Disconnect Switch
Easy Access For Maintenance When Required
Includes Roof Curb Cap Base, Weather Cover For Motor And Exhaust Guard
UV Treated
Discharge To 8 Different Positions In 45º Increments

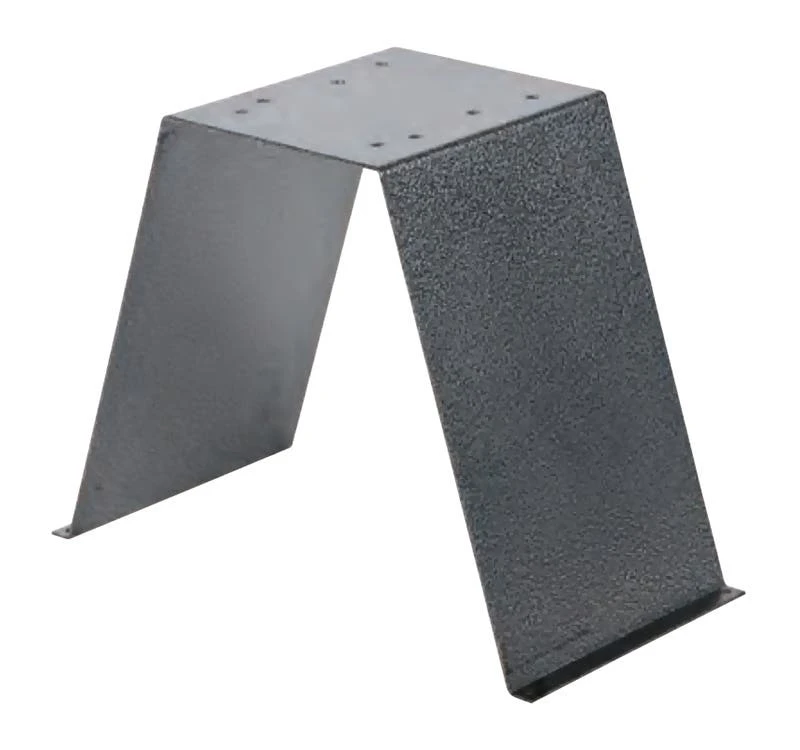

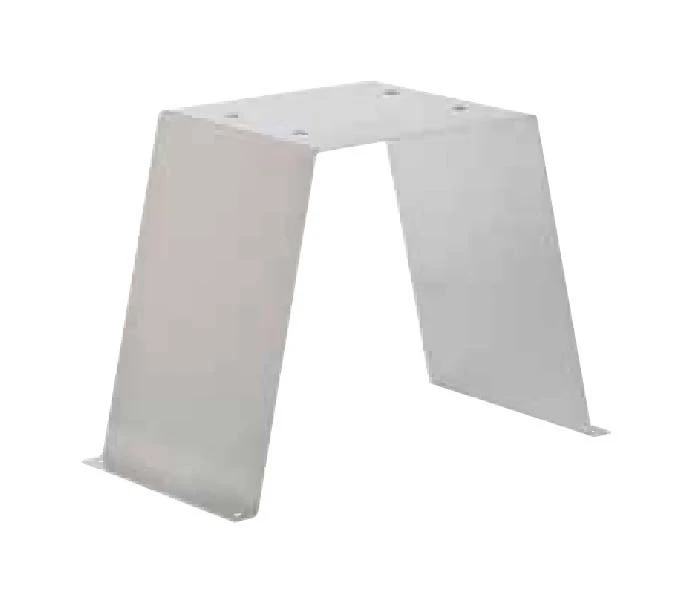

Plastec Enamel Coated Metal Motor Support Stand for Models Storm 10 & 12, P15, P20

Plastec enamel coated metal motor support stand for models Storm 10 & 12, P15, P20.

Features

Attractive Design
Easy To Install
Motor Mounting Hardware Supplied Is Stainless Steel
Strong, Durable And Rust Resistant
Model MB35 Has Support Bracket

SKU	MB15
Wheel Size	8"
Width	21.54"
Height	22.05"
Amperage Requirement	2.4
Electrical	120/240 V, Single Stage, 60 Hz
Horsepower	.25 HP
Motor RPM	1140
Decibel Level (dBA)	43
Weight (in lbs)	4.000000
Maximum CFM	1200
Static Pressure	6 inWg
Drive Type	Direct
Blower Motor	Standard Duty, Single Phase, Capacitor Run
Additional Information	For Corrosive Environment
Brand/Manufacturer	Plastec
Depth	22.05"
