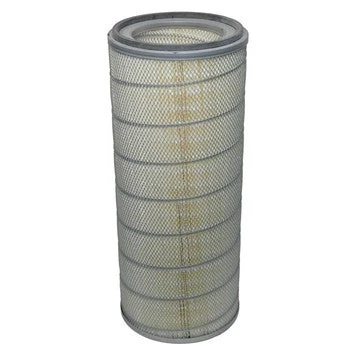

P033980-016-436 – Donaldson – OEM Replacement Filter

P033980-016-436 Details

OEM Make: Donaldson
Part Number: P033980-016-436
Dimensions: 8.38 x 12.74 x 32
Outside Diameter: 12.74″
Length: 32.00″
Inside Diameter: 8.38″
Top: Open
Bottom: Closed with a 0.53″ bolt hole
Shape: Round
Approx. Square Footage of Filter Media: 221
Notes: The OEM spec for this Donaldson dust collector filter is Fire Retardant Nanofiber which is the UltraWeb equivalent. (Select the Nanofiber version from the dropdown box above.) Nanofiber is best to filter laser/plasma smoke and dust, oily weld fumes, and carcinogenic fumes. If you are just collecting general manufacturing dust then selecting 80/20 cellulose/polyester media on this filter can save you some money. Give us a call at (866) 393-0297 and we can help you determine the proper filter media for your application.
