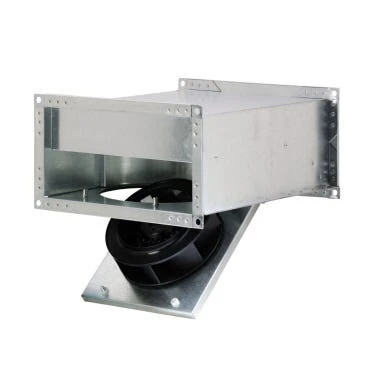

Fantech FRD 16-8 Rectangular Inline Fan 540 CFM Single Phase – FRD 16-8

Features

• 540 CFM
• Single Phase
• 3087 RPM
• Max temperature of transported air 140 °F
• Insulation class B
• Enclosure class, motor IP44
• Capacitor 10 µF
• Hinged door for service access
• Terminal box with prewired electrical strip
• 100% speed controllable
• Airstream temperatures of up to 140° F
• Three-year warranty
• UL Listed and AMCA Certified

The FRD Series centrifugal type exhaust/supply fans are specifically designed for large ventilation needs where space is at a premium, such as hospitals, schools, or office buildings. System balancing is easy – a simple speed adjustment equalizes all vents to compensate for hot or cold spots.

The compact housing design of the FRD Series allows for installation directly within rectangular ductwork (ranging from 12″x 6″ ducts to 24″x 14″ ducts), without the need for large elbows or transitional sections. FRD Series fans are simple to install; no extra materials are required. Simply mount the fan at any angle in any point in the ductwork. The motor is mounted on a hinged door – just swing the door out for easy access to the motor and wiring connections.
