Fantech FR 150 Centrifugal Inline Fan 324 CFM Single Phase – FR 150

Features

• 324 CFM
• Single Phase
• 2630 RPM
• Max temperature of transported air 140 °F
• Insulation class B
• Enclosure class, motor IP44
• The FR series includes 6 fan model sizes with airflow capacities between 150 and 345 cfm
• Vibration welded seam ensures leak proof housing
• 100% speed-controllable
• Air stream temperatures up to 140 °F

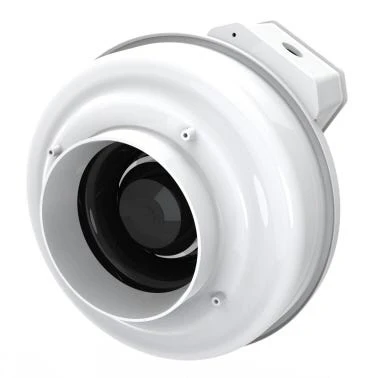

A A centrifugal type exhaust/supply fan specifically designed for moderate size ventilation applications. The fan can be mounted at any angle at any point along with the ductwork and straight-through airflow design allows easy installation. By using accessory FC type mounting clamps fan can easily be removed from ductwork for service. Fans are constructed in accordance with standard dimensions for spiral duct eliminating the need for transition pieces. Fan motors are capable of operating in airstream temperatures up to 140 oF. Motor bearings are permanently sealed self-lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid-state or transformer type control. All FR Series fans are backed by Fantech’s Five Year Warranty.
