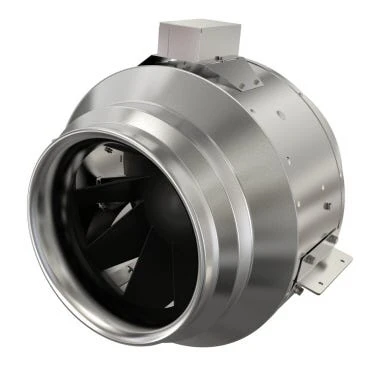

Fantech FKD 16 Mixed Flow Fan 2952 CFM Single Phase – FKD 16

Features

• 2952 CFM
• Single Phase
• 1586 RPM
• Max temperature of transported air 140 °F
• Insulation class F
• Enclosure class, motor IP54
• Mixed-flow impeller
• 100% Speed-controllable
• Integral thermal contacts
• Air stream temperatures up to 140 °F

A mixed flow centrifugal type exhaust/supply fan for moderate size ventilation applications specifically designed to bridge the transition from centrifugal to axial. FKD Series fans offer substantially quieter performance and are easier to install than axial arrangements. Fans can be mounted at any angle in any point along the duct work and straight-through air flow design allows easy installation. Fans can be easily removed from duct work for service. Fan motors are capable of operating in air stream temperatures of 140o F. Motor bearings are a permanently sealed, self lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid state or transformer type control. All FKD Series fans are backed by Fantech’s Three Year Warranty.
