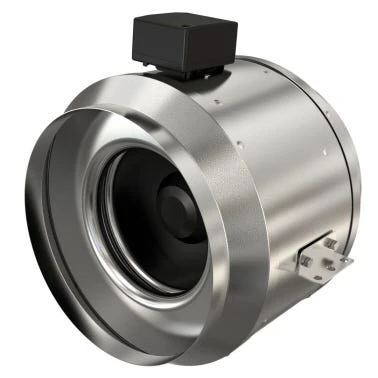

Fantech FKD 10 Mixed Flow Fan 909 CFM Single Phase – FKD 10

Features

• 909 CFM
• Single Phase
• 2699 RPM
• Max temperature of transported air 60 °C
• Insulation class B
• Enclosure class, motor IP44
• Mixed-flow impeller
• 100% Speed-controllable
• Integral thermal contacts
• Air stream temperatures up to 140 °F

A mixed-flow centrifugal type exhaust/supply fan for moderate size ventilation applications specifically designed to bridge the transition from centrifugal to axial. FKD Series fans offer substantially quieter performance and are easier to install than axial arrangements. Fans can be mounted at any angle at any point along with the duct work and straight-through air flow design allows easy installation. Fans can be easily removed from duct work for service. Fan motors are capable of operating in airstream temperatures of 140o F. Motor bearings are a permanently sealed, self-lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid-state or transformer type control. All FKD Series fans are backed by Fantech’s Three Year Warranty.
