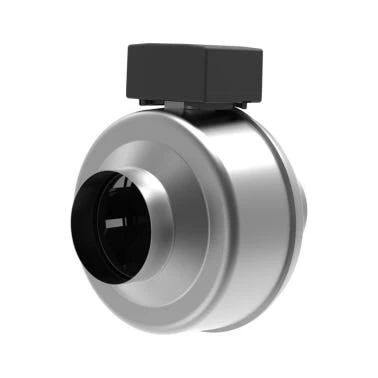

Fantech FG 4XL Centrifugal Inline Fan 173 CFM Single Phase – FG 4XL

Features

• 173 CFM
• Single Phase
• 2559 RPM
• Max temperature of transported air 140 °F
• Insulation class B
• Enclosure class, motor IP44
• Speed-controllable
• Built-in thermal overload protection with automatic reset
• Can be installed in any position and outdoors
• Maintenance-free and reliable
• Mounting bracket and hardware included
• Five-year factory warranty

A centrifugal type exhaust/supply fan specifically designed for moderate size ventilation applications. The fan can be mounted at any angle in any point along the duct work and straight-through air flow design allows easy installation. By using FC type mounting clamps, fan can be easily removed from duct work for service. Fans are constructed in accordance with standard dimensions for spiral duct eliminating the need for transition pieces. Fan motors are capable of operating in air stream temperatures up to 140o F. Motor bearings are a permanently sealed, self lubricating ball type. All fans are 100% speed controllable through a decrease in the voltage by using a solid state or transformer type control. All FG Series fans are backed by Fantech’s Five Year Warranty.
