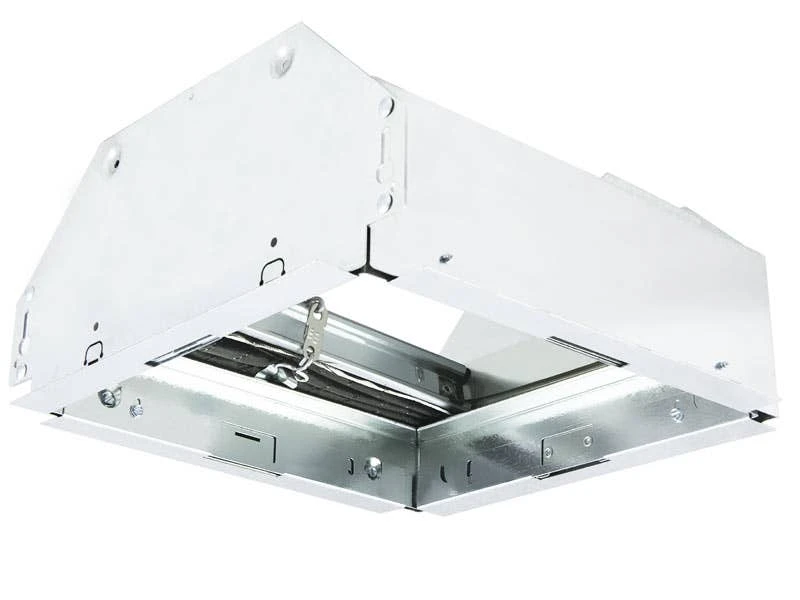

BreezSmart Ventilation Fans SMT-CRD – Ceiling Radiation Damper

Delta BreezSmart Series

SMT-CRD Ceiling Radiation Damper is UL and cUL listed, and exceeds UL 555C for use in 3-hour fire rated assemblies. SMT-CRD is also Warnock-Hersey certified for use in fire rated floor/ceiling or roof/ceiling assemblies.

The damper employs a folded curtain style blade for point-of-origin control of radiant heat in a ventilation system. SMT-CRD installs in the ceiling membrane for floor/ceiling or roof/ceiling assemblies with a re resistance rating up to and including 3 hours.

Features:

• Delta BreezSmart SMT-CRD – Ceiling Radiation Damper helps to limit the radiant heat transfer through an air inlet/outlet opening in the ceiling membrane.
• SMT-CRD Ceiling Radiation Damper is UL and cUL listed, and exceeds UL 555C for use in 3-hour fire rated assemblies.
• Galvanized steel frame and sleeve
• Folded ceramic curtain blade
• 165°F fusible link
• High temperature, non-asbestos, reinforced fiber thermal fabric
• Warnock-Hersey certified for use in fire rated floor/ceiling or roof/ceiling assemblies. Warnock Hersey listing #: 102195501SAT-002
• CSFM listing: 3226-0368:104
• UL 555C listing: R27832
• Meets NFPA Standards: 90A and 101
• Meets Building Code Standards: IBC, NBC, NFPA, SBC, and UBC
• Installation is valid for the following UL rated wood truss ceilings: L521, L546, L558, L562, L574, L576, L581, L583, L585, P522, P533, P538 and P545.
• Intended for installation with the following UL Listed Delta Electronic Fan Models SMT130, SMT130M, SMT130H, SMT150, SMT150D, and SMT150LED (For combustible and non-combustible installation), SLM80, SLM100, SLM80-110-C, SLM80-110LED-C, SLM80-110D-C, and SLM80-110DLED-C (For non-combustible installation only).
