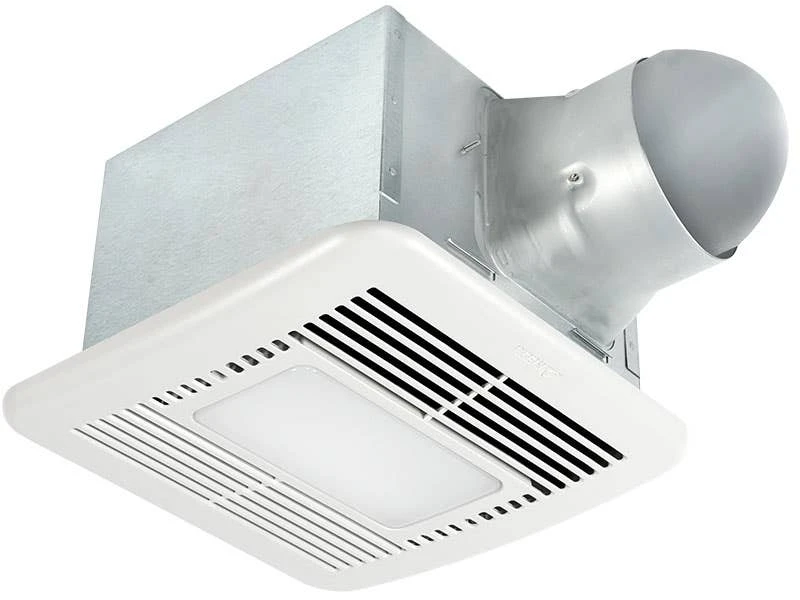

BreezSignature – SIG80-110LED – 80/110 CFM Exhaust Fan/Dimmable LED Light/Night-Light

SInnovative brushless DC motor design for long life, low noise, and low power consumption

The exceptional reliability of Delta’s Brushless DC Motor is combined with control options including adjustable continuous low speed down to 30 CFM. Delta Breez model SIG80-110LED has been awarded ENERGY STAR® qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of less than 0.3 Sones at 0.1”static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 9.7 Watts with efficiency rating of 12.7 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. LED life is 30,000 hours (compare with 10,000 hours CFL life). One 13-Watt LED main light and one 2-Watt LED night light are included. Main light output is 800 Lumens and 3000K. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features:

• ENERGY STAR® qualified with innovative brushless DC motor technology
• Perfectly quiet operation at less than 0.3 sones)

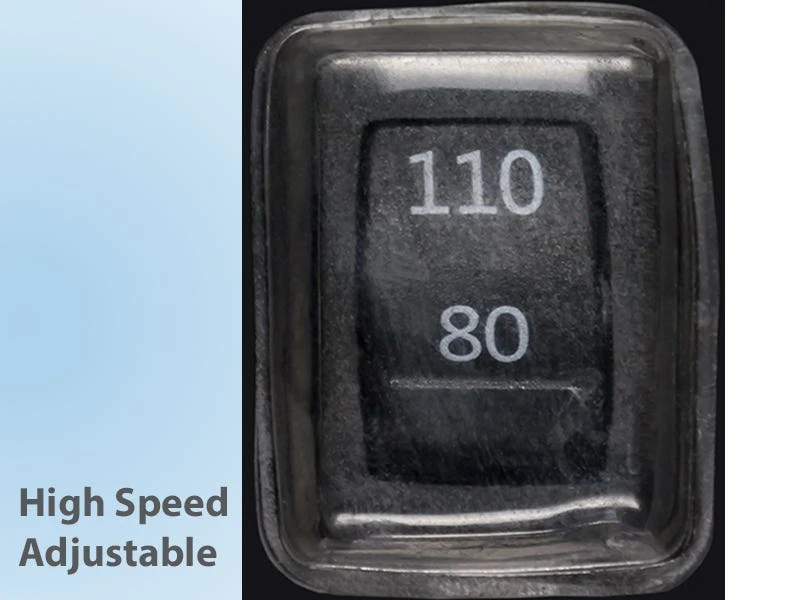

• Full speed adjustable, 80 or 110 CFM
• Includes (1) 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
• Includes 2-Watt LED night light
• Main light output: 800 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements

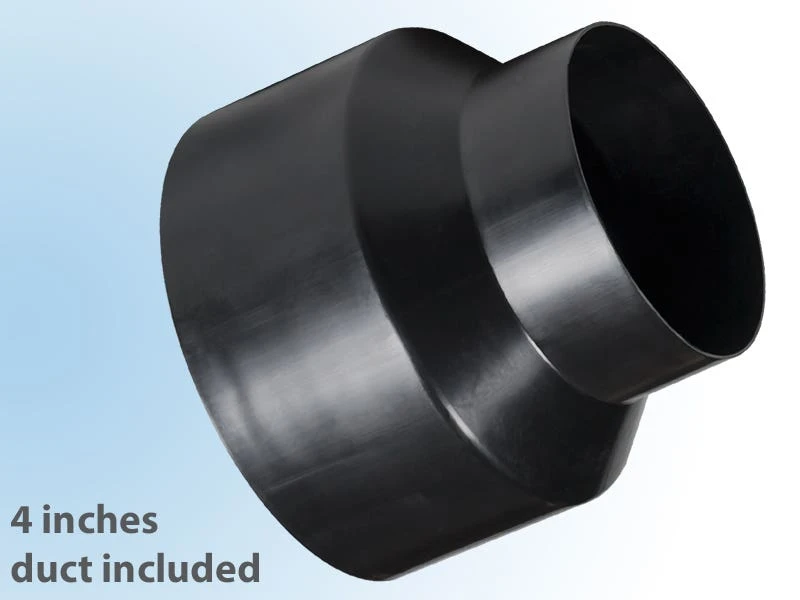

• Includes 6″ to 4″ duct reducer
• Energy efficiency at 13.8 CFM/Watt

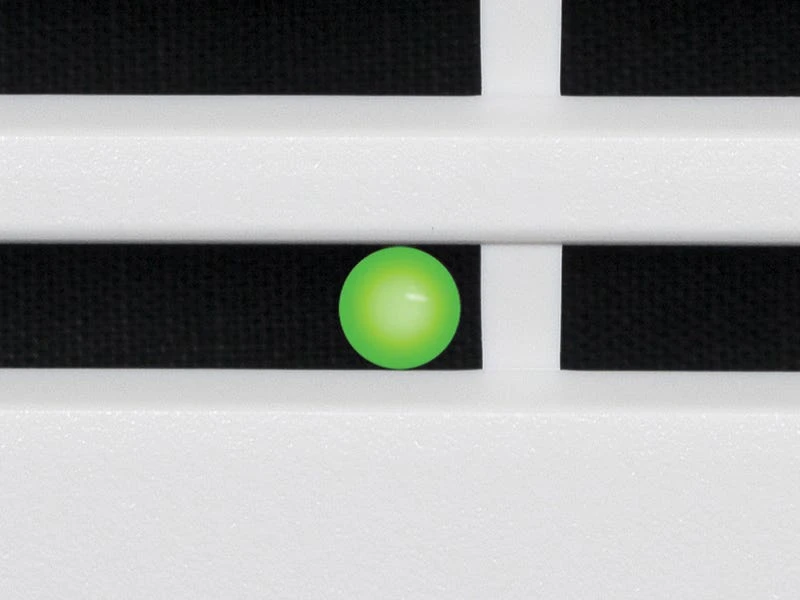

• Green LED indicator light to show power is on
• Annual energy cost for 24/7 operation is approximately $7.15 (80 CFM) or $10.20 (110 CFM)
