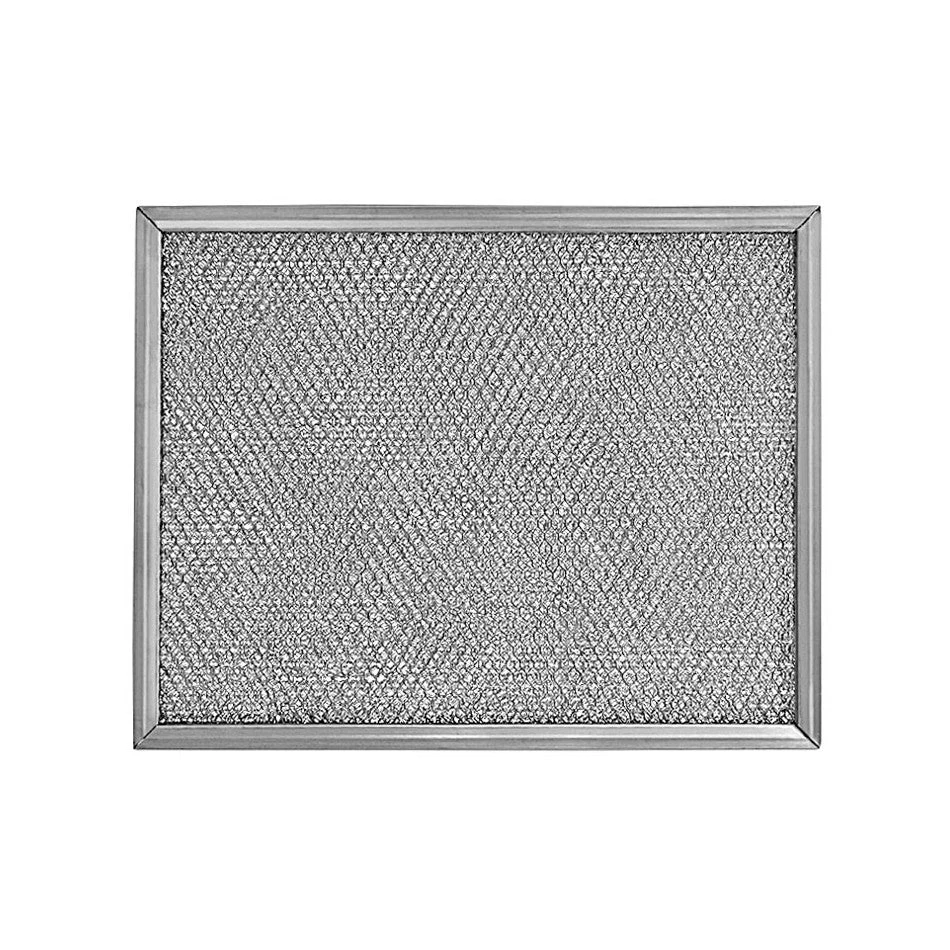

Aluminum Metal Filter, Custom Size In 1/8″ & 1/4″ Thickness

Air Filter Specifications

• OEM Make: DAMN Filters
• Part Number: DFAFCS
• Length: TBD
• Width: TBD
• Depth: 1/8″ or 1/4″
• Initial Resistance: 0.4″ wg at 350 FPM

Sizing: Calculate square inches to find pricing. Exact sizing needed to place the order. 1/8″ or 1/4″ same pricing. Call for oversized filters.

If one dimension is greater than 30” multiply price by 1.3

If one dimension is greater than 50” multiply price by 1.4

Maximum sizes: 550 sq inches

Aluminum filter that consists primarily of layers of aluminum slit and expanded into mesh of differing densities.

The Aluminum material is made of many layers of tiny baffles, bonded together to make a solid pad.

The frame construction is roll formed and riveted at one corner. Frame material made from sheet aluminum, commercially known as 3003-H14, .020 thickness.

The Bonded A Filter has a maximum temperature range of 225 degrees F.

Applications:

• Ceiling vent fans
• Air cleaners
• Electronic equipment
• Computer environment systems
• Kitchen air exhaust systems
• Microwaves and wall heaters

Call for availability, most filters have a minimum order

DAMN Filters offers a full line of metal mesh filters.

If you don’t see the Metal Mesh filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
