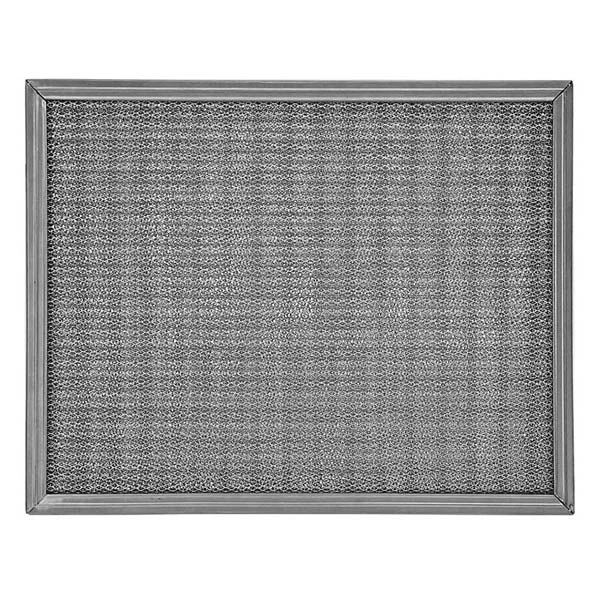

10x20x2 Metal Mesh Air Filter (Aluminum)

Air Filter Details

• Part Number: DF10202MMSA
• Dimensions (inches): 10″ x 20″ x 2″
• Length: 9 1/2″
• Width: 19 1/2″
• Depth: 1 7/8″
• Material: Filtering element processed from sheet Aluminum, commercially known as 3003-H22, .025 in thickness expanded with .020 strand. Frame made from sheet Aluminum 3003-H14, .025 thickness.
• Medium weight aluminum frame with corner rivets and drain holes. Multiple layer expanded aluminum media.
• Maximum operating temperature 240 degrees F. Lightweight washable filter. For light industrial or commercial applications.

Call for availability, 2 pc minimum order.

Available with Bail Handles, add item# DF-HBGI-MMG.

Metal Mesh Filter Cross Reference

Air Handler 4C405, Smith Filter Thrift Aire TA10202N, Permatron Model MMA-1″, Model MMA-2″, American Metal Filter HEA Series, Air Filters Inc Quik-Kleen EZ002012, Zoro# G3751282.

DAMN Filters offers a full line of metal mesh filters.

Air Delivery Data Chart

If you don’t see the Metal Mesh filter you are looking for or need help give us a call at (844) 605-3266 or contact us.
